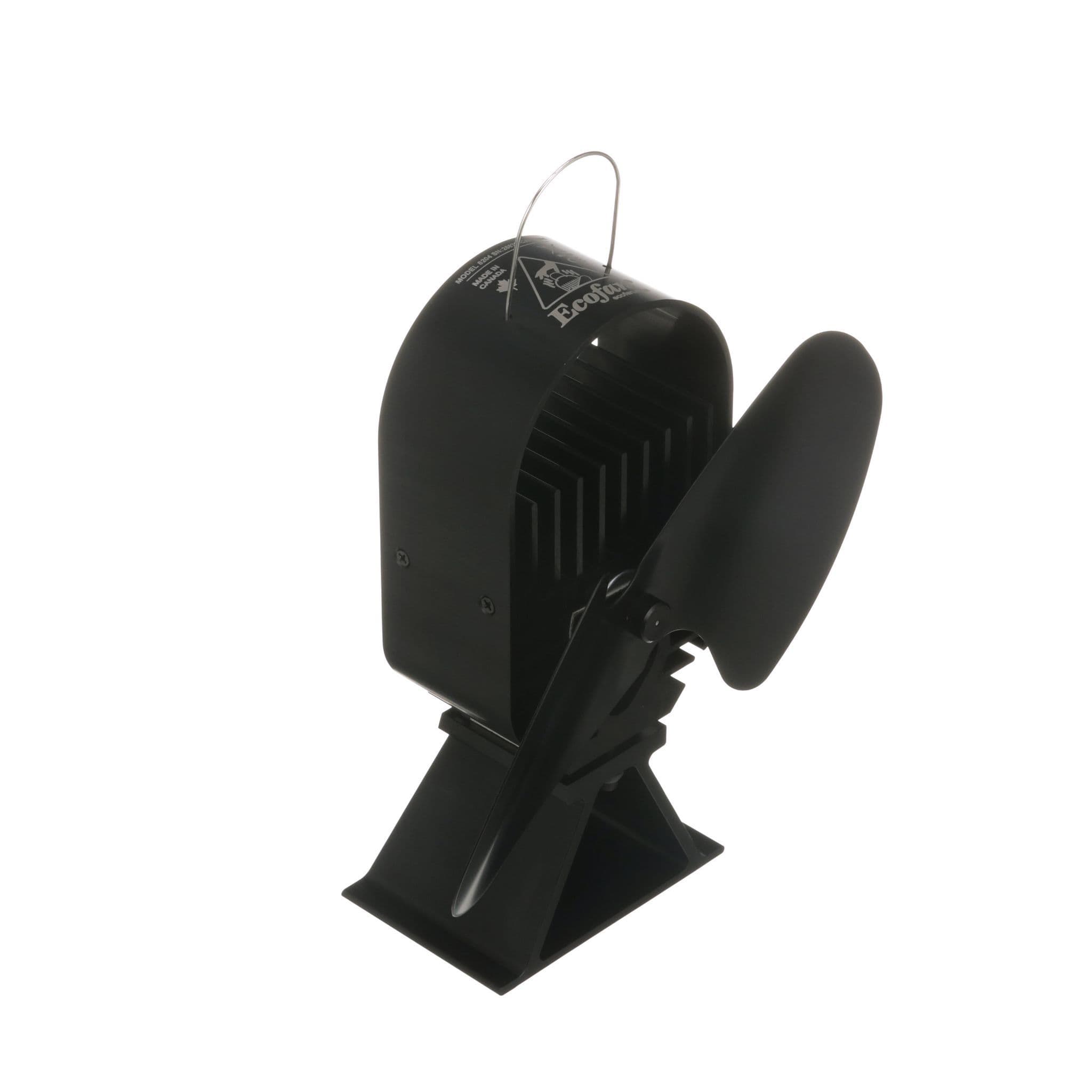

Caframo AirDeco 8204 Wood-Stove Ecofan
The Caframo AirDeco 8204 Ecofan is a heat-powered fan designed to circulate warm air generated by a wood stove, improving heating efficiency and comfort. Operating within a temperature range of 70°C to 345°C, it effectively distributes heat without requiring batteries or mains power.
Key Features:
Improved Heat Distribution – Circulates warm air into the living area instead of letting it rise to the ceiling.
Energy-Free Operation – Powered by stove heat, requiring no cables, plugs, or batteries.
Fuel Savings – Proven to reduce fuel consumption by up to 18%, based on university testing.
Automatic Speed Adjustment – Adjusts speed according to stove temperature, running faster as heat increases and slowing down as it cools.
Safe & Efficient Blade Design – Moves air gently without creating uncomfortable drafts, complying with IEC 60335-2-80 safety standards.
Performance:
Airflow Output: Up to 190 CFM (Cubic Feet per Minute)
At 70°C: Moves 50 CFM
Specifications:
Base Dimensions: 102 x 76mm (4.3 x 3")
Height: 240mm (9.4") (excluding handle)
Blade Diameter: 228mm (9")
Optimal Placement for Maximum Efficiency:
For the best performance, place the Ecofan® at the back edge of the stove where it can draw cool air over its fins. Avoid positioning it in front of the stovepipe or at the stove’s front.
The Caframo AirDeco 8204 Ecofan is an economical and effective solution for improving heat circulation, enhancing comfort, and reducing fuel consumption.
